Volpak SP-220-L2F

Volpak SP-220-L2F

Contact us for price

Hoevelaken, Netherlands

orCall (+31) 65321 2296

Description

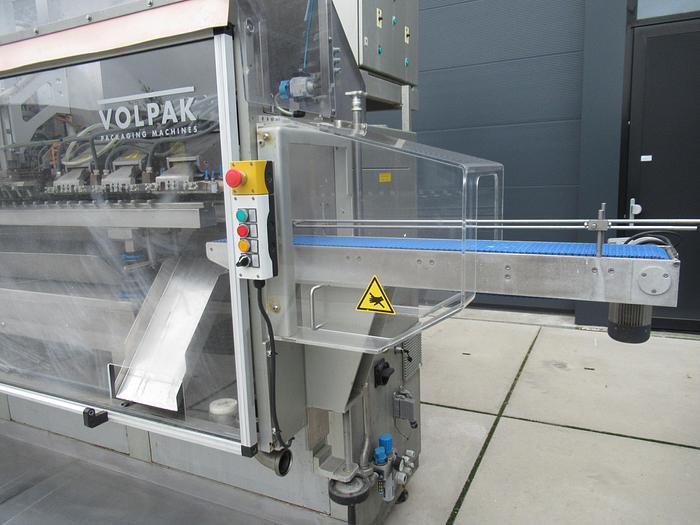

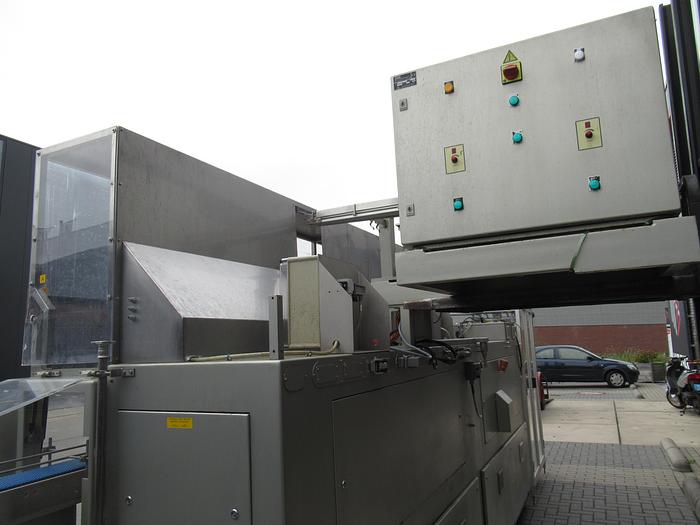

1 x Used Volpak SP-220 L2F horizontal-, form-, fill-, and seal machine. From the year 2007.

The machine is equipped with the following options, ready to run Doy-pack pouches with a top central spout and liquids in duplex.



•2 x Bottom hole puncher

•Splicing table with pneumatic brakes

•Forming plough with motor driven height adjustment

•Splice detection

•Reel edge aligner

•Servo driven film unwinder

•Photocell

•Spout feeder in duplex including deviding conveyor, elevator feeder excluded

•Liquid filler with 2 nozzles, flowmeter system Yokogawa

•No hopper for filling

•No pouch No fill

•Empty pouch detection

•Outlet conveyor



Size range: Min. 50 x 60 x 30 mm

                   Max. 110 x 310 x 125 mm



Capacity:  90-100 pouches/min

Specifications

ManufacturerVolpak
ModelSP-220-L2F
Year2007
ConditionUsed
Capacity90-100 pouches/min
Pouch max. breedte110
Pouch max. hoogte310
Pouch min. breedte50
Pouch min. hoogte60
