2010 Volpak SP-170 L1F

Sold
2010 Volpak SP-170 L1F
Location:Hoevelaken, Netherlands
Description

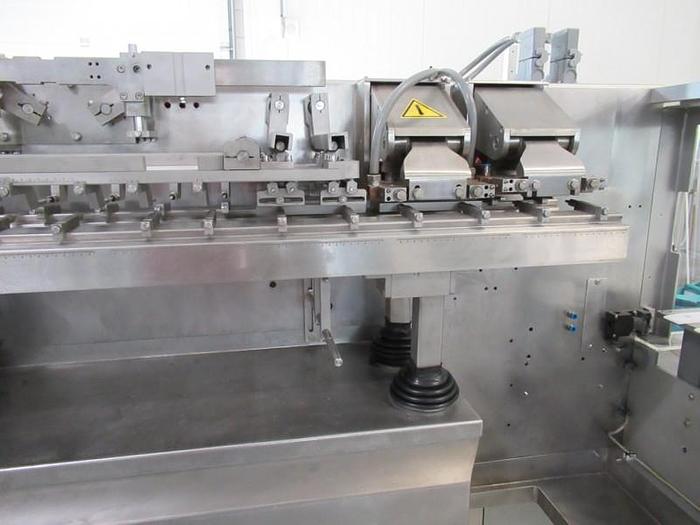

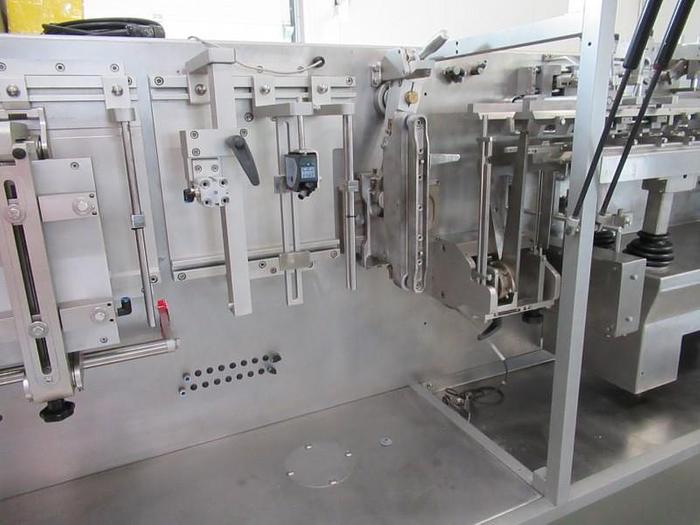

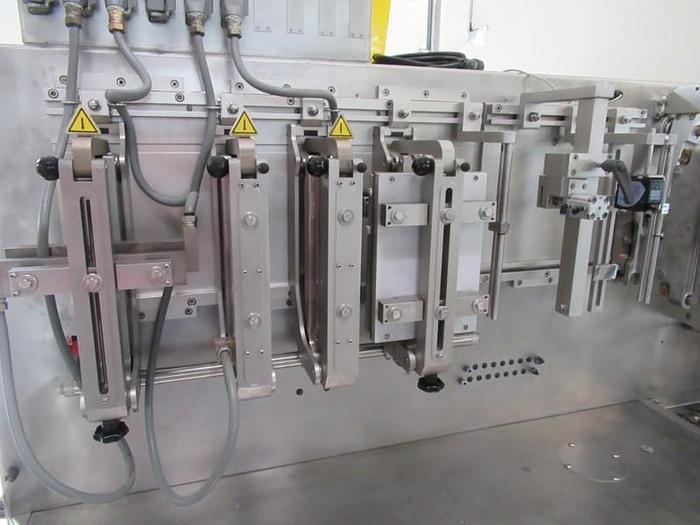

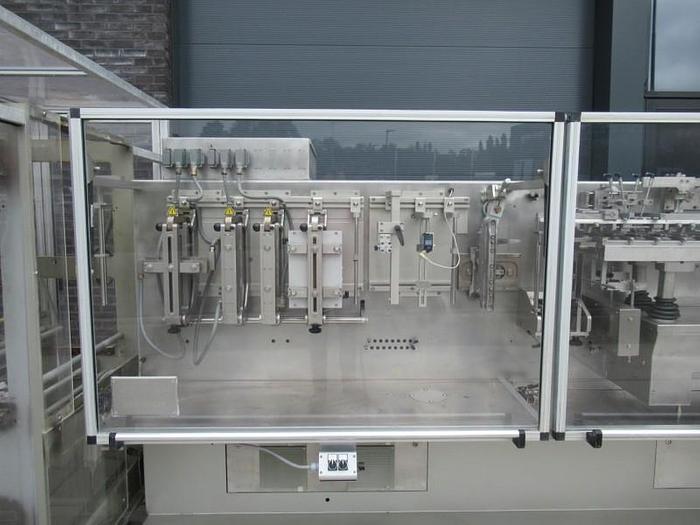

Used Volpak SP-170 L1F horizontal-, form-, fill-, and sealmachine. From the year 2010, ready to run Doy-pack pouches in simplex.
1 x Used Volpak SP-170 L1F horizontal-, form-, fill-, and seal machine. From the year 2010. The machine is equipped with the following options, ready to run Doy-pack pouches in simplex.
2 x Bottom hole puncher
Splicing table with pneumatic brakes
Forming plough with motordriven height adjustment
Gusset former for doy-pack pouches
Reel edge aligner
Servodriven filmunwinder
Photocell
Pneumatic notch device 'line'
No pouch No fill
Empty pouch detection
Outlet conveyor
OMRON PLCr
No Filler
Sizerange:
Min. 70x 60 x 30 mm
Max. 170 x 240 x 100mm
Capacity: 90-100 pouches/min
Specifications
| Manufacturer | Volpak |
| Model | SP-170 L1F |
| Year | 2010 |
| Condition | Used |
| Direction | Horizontal in-line |
| Pouchstyle | Doypack + spout |
| Product type | All |
| Pouch max. width | 170 |
| Pouch min. width | 70 |
| Pouch max. height | 240 |
| Pouch min. height | 60 |
