2013 Mespack H-420 FED

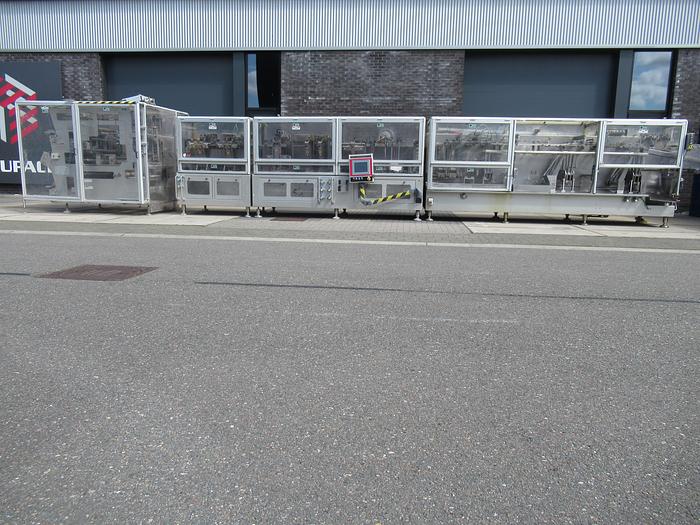

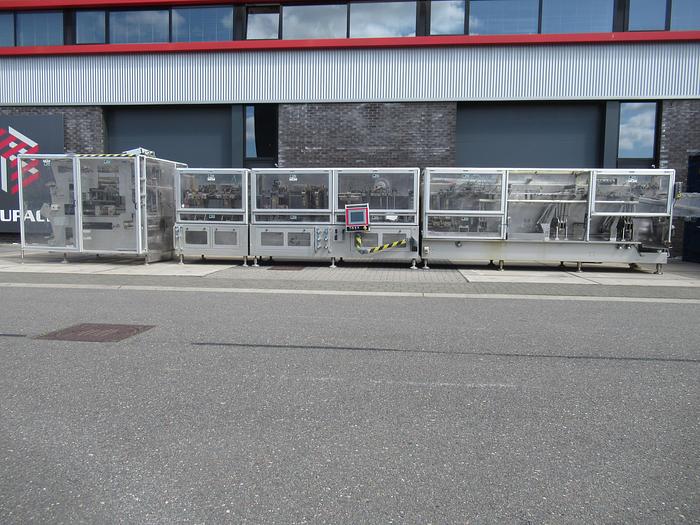

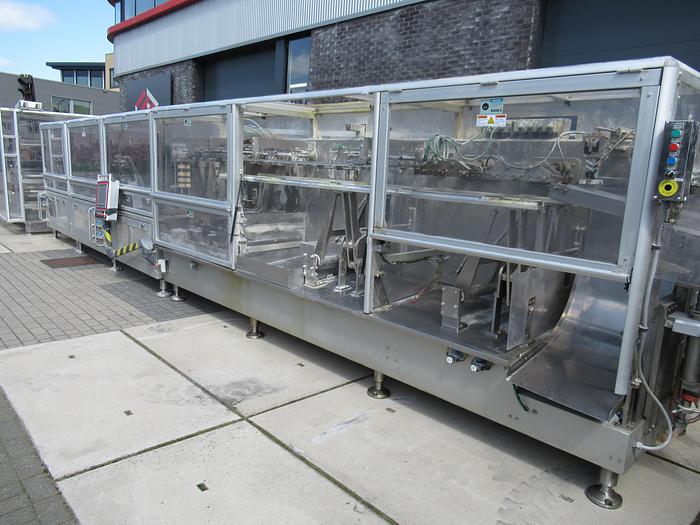

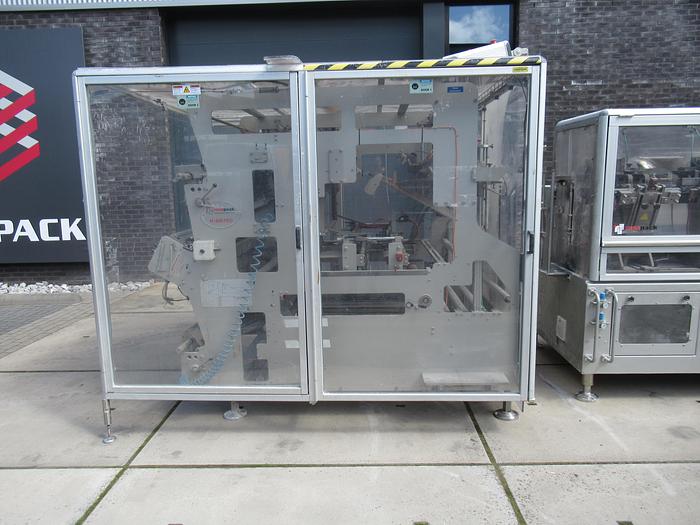

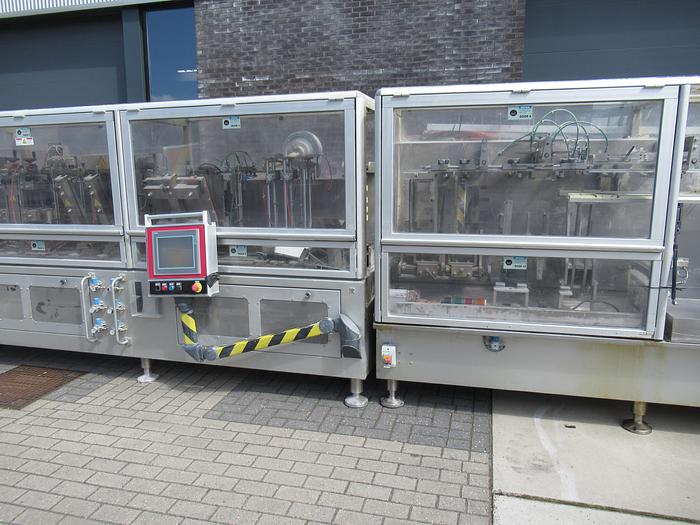

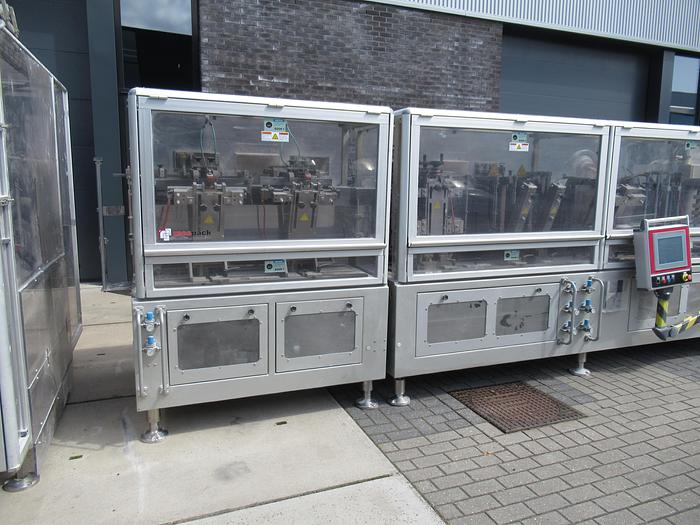

2 x Mespack H-420 FED horizontal-, form-, fill-, and seal machine. From the year 2013.

The machine is equipped  with the following options,  ready to run Doypack pouches with or without zipper in simple or duplex.

•Servo driven unwinding

•”Butler” automatic film splicing system

•Bottom hole perforation in duplex

•Gusset former for doypacks

•Zipper applicator

•Reel edge aligner

•Photocell

•Bottom seal

•Servo driven film pulling

•All product touching parts in AISI 316

•V-shaped notch device duplex

•No pouch no fill

•Empty pouch detection

Size range: Min.  120 x 150 mm (duplex and simplex)

                   Max. 210 x 400 mm (duplex)     420 x 400 (simplex)

Filling volume: Max  2500 cc in duplex, and 10.000 cc in simplex

Capacity:  110 pouches/min in duplex, and 55 pouches/min in simplex
