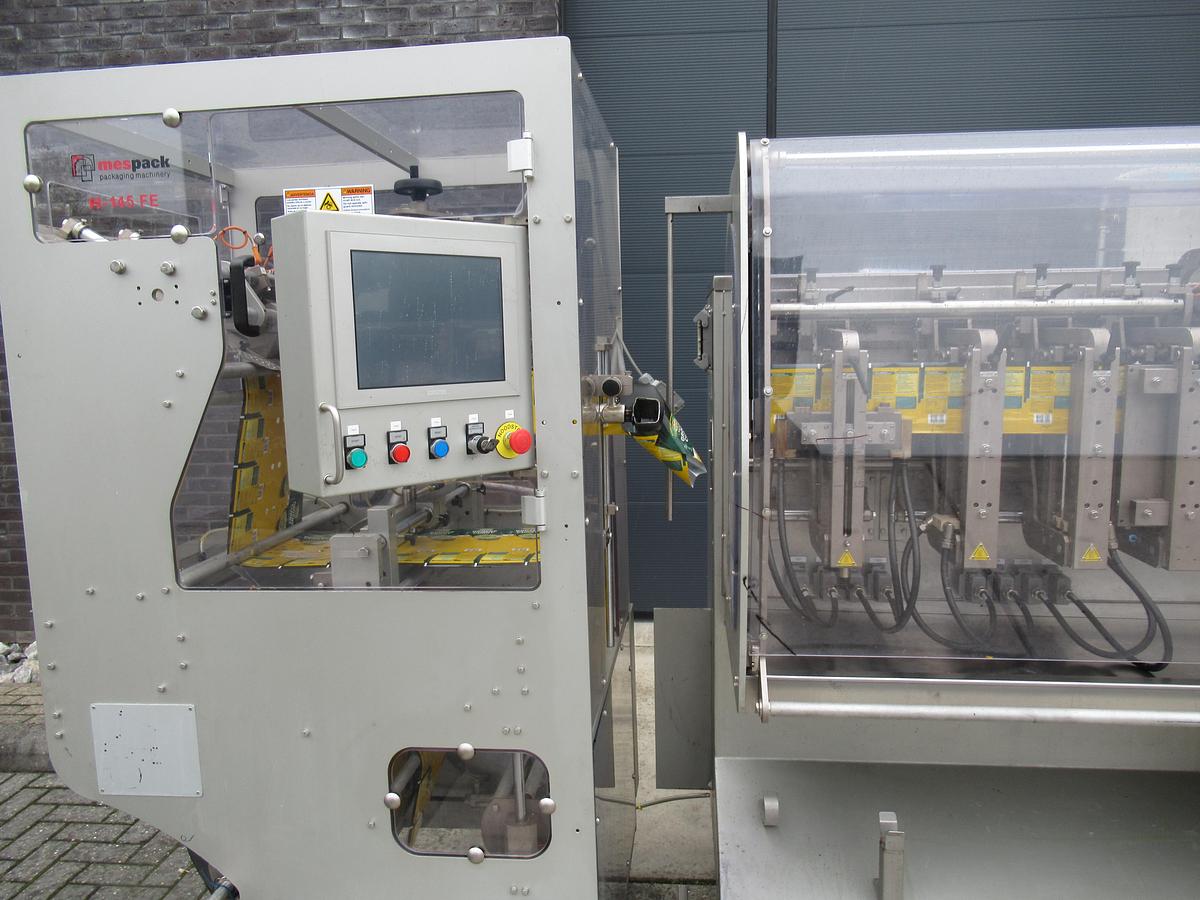

2013 Mespack H-145 FE

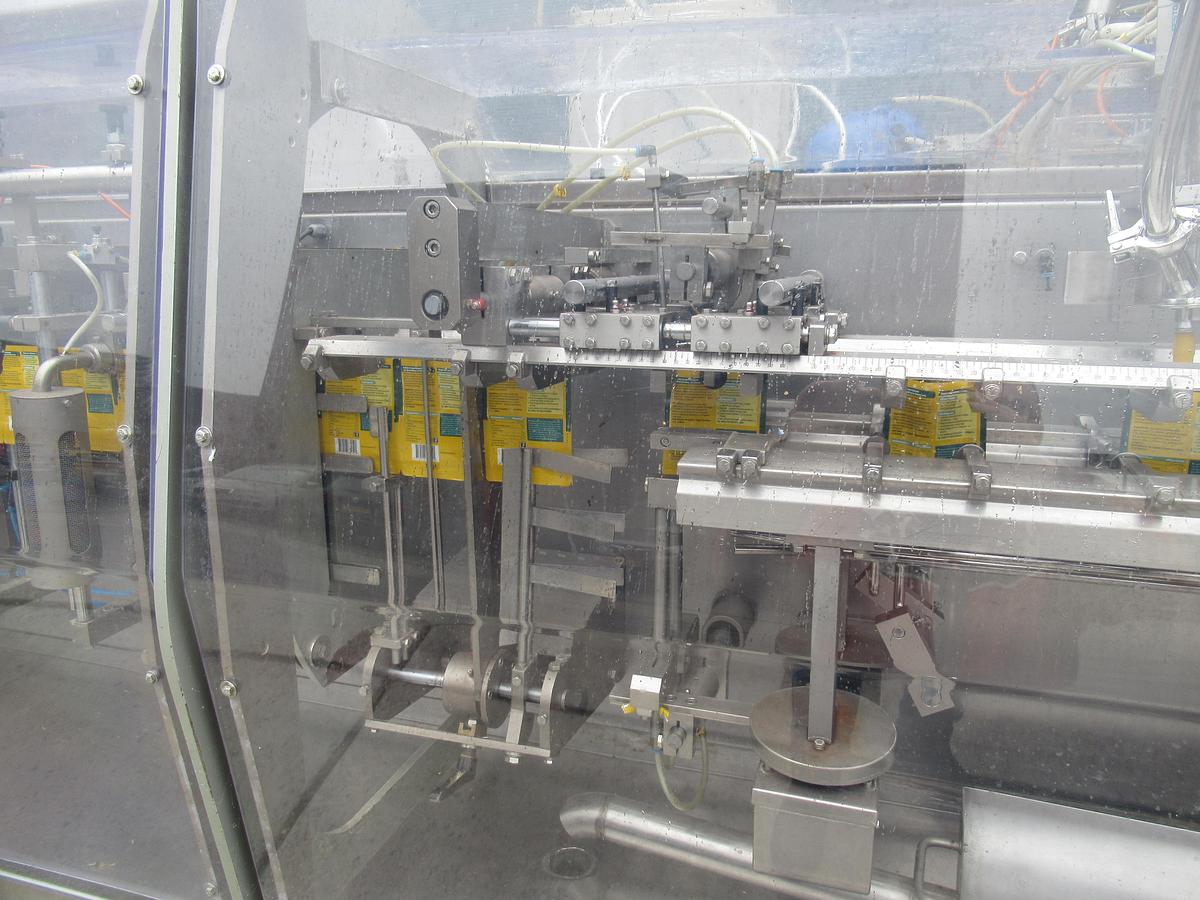

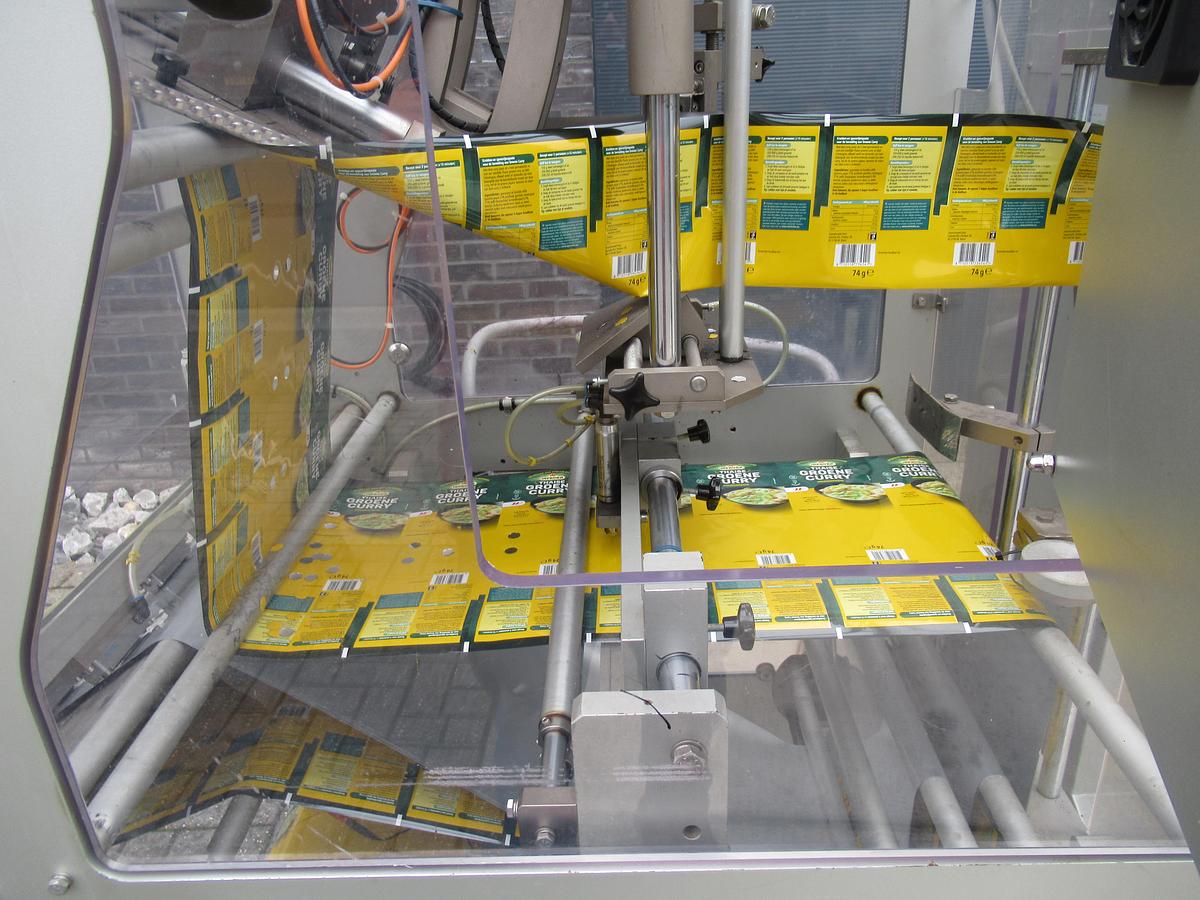

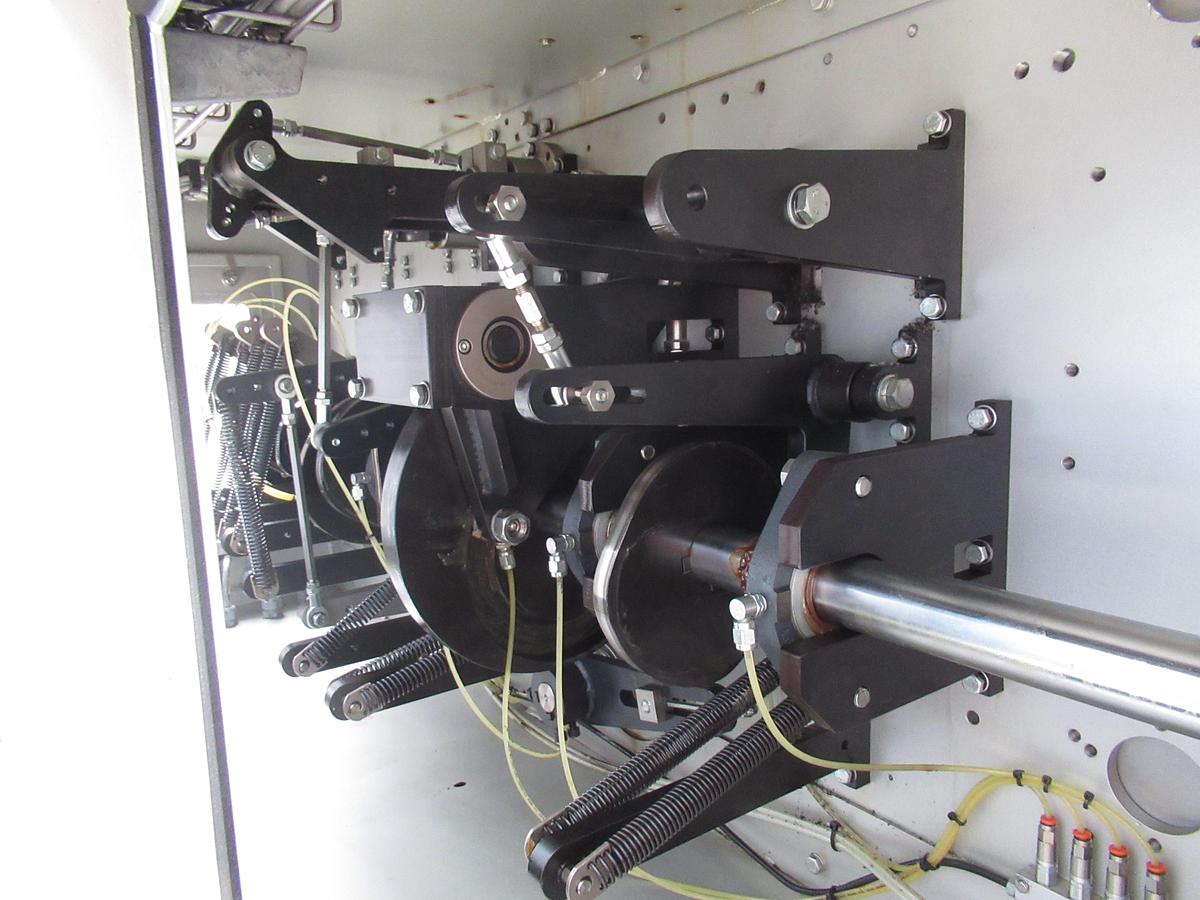

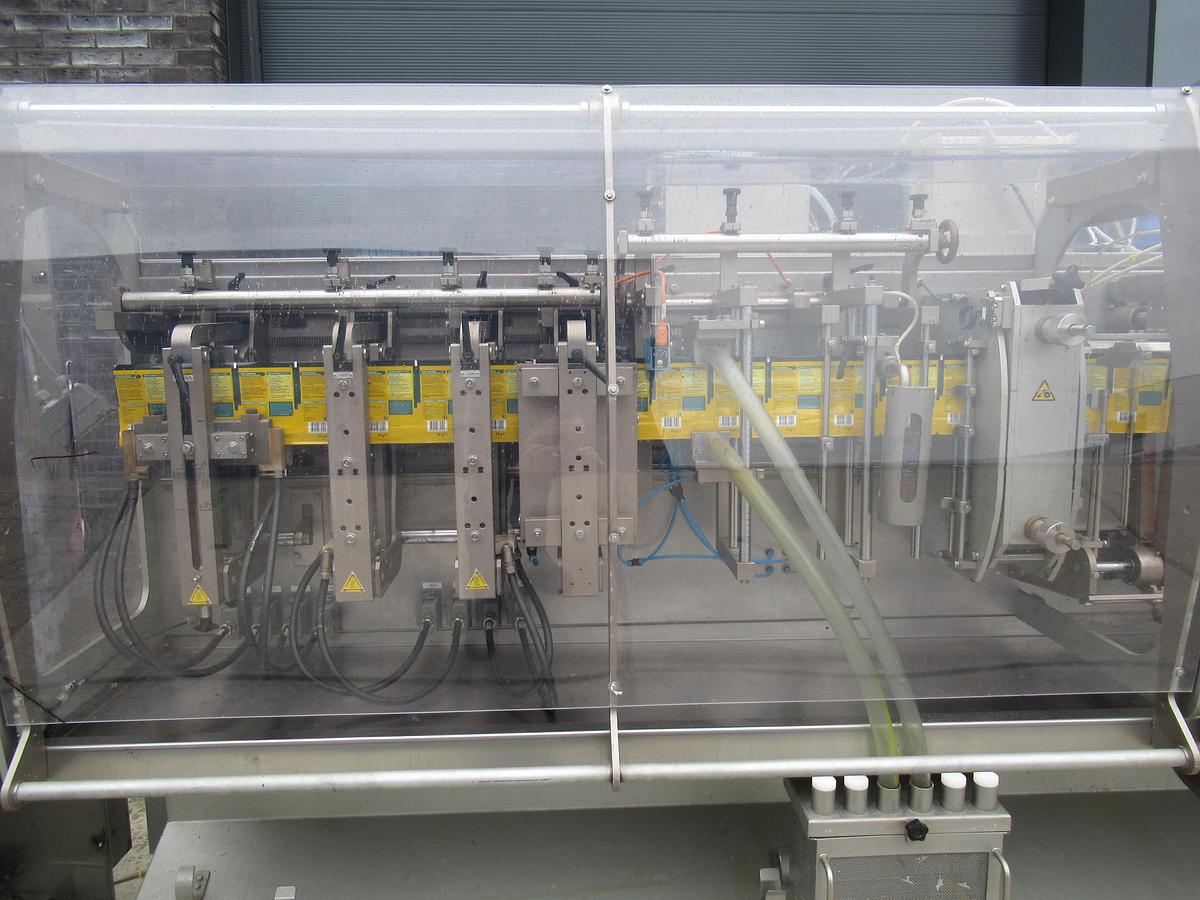

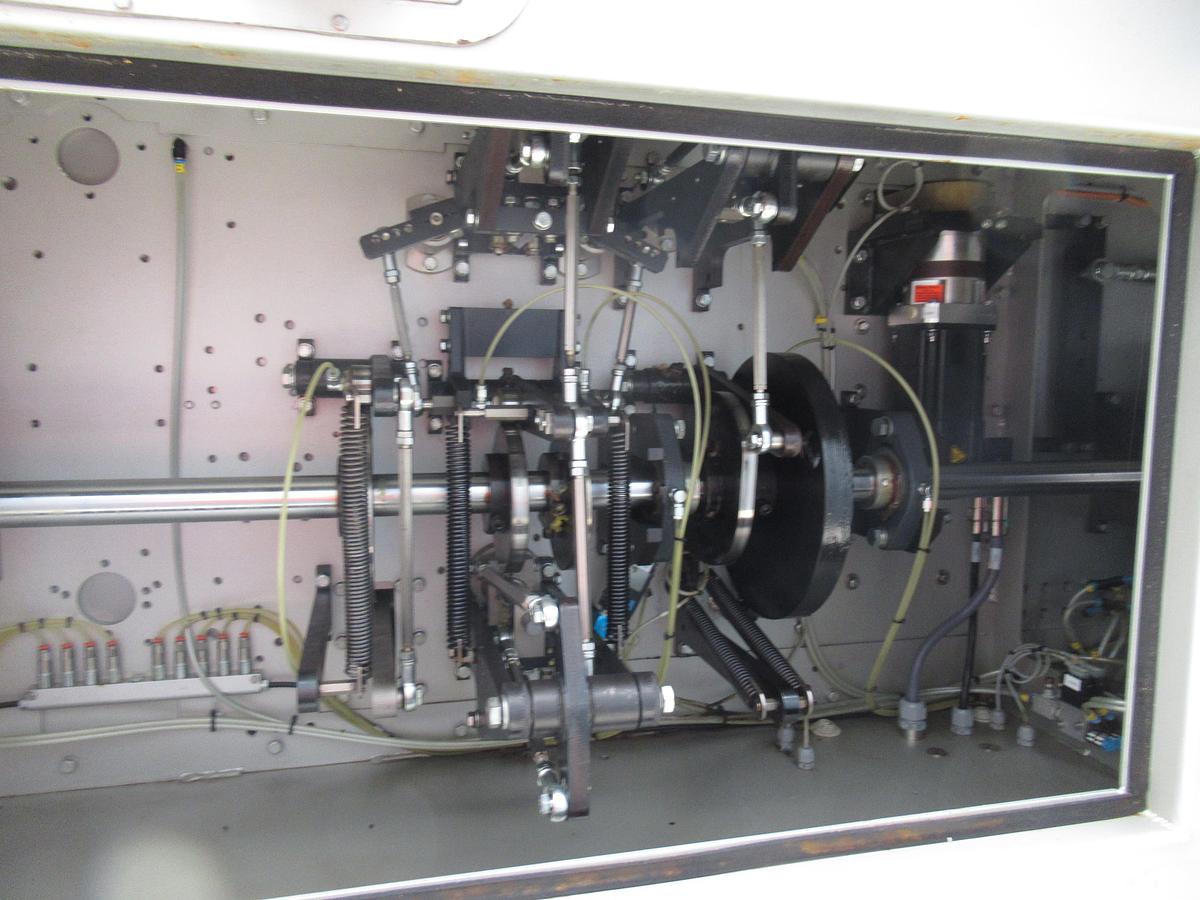

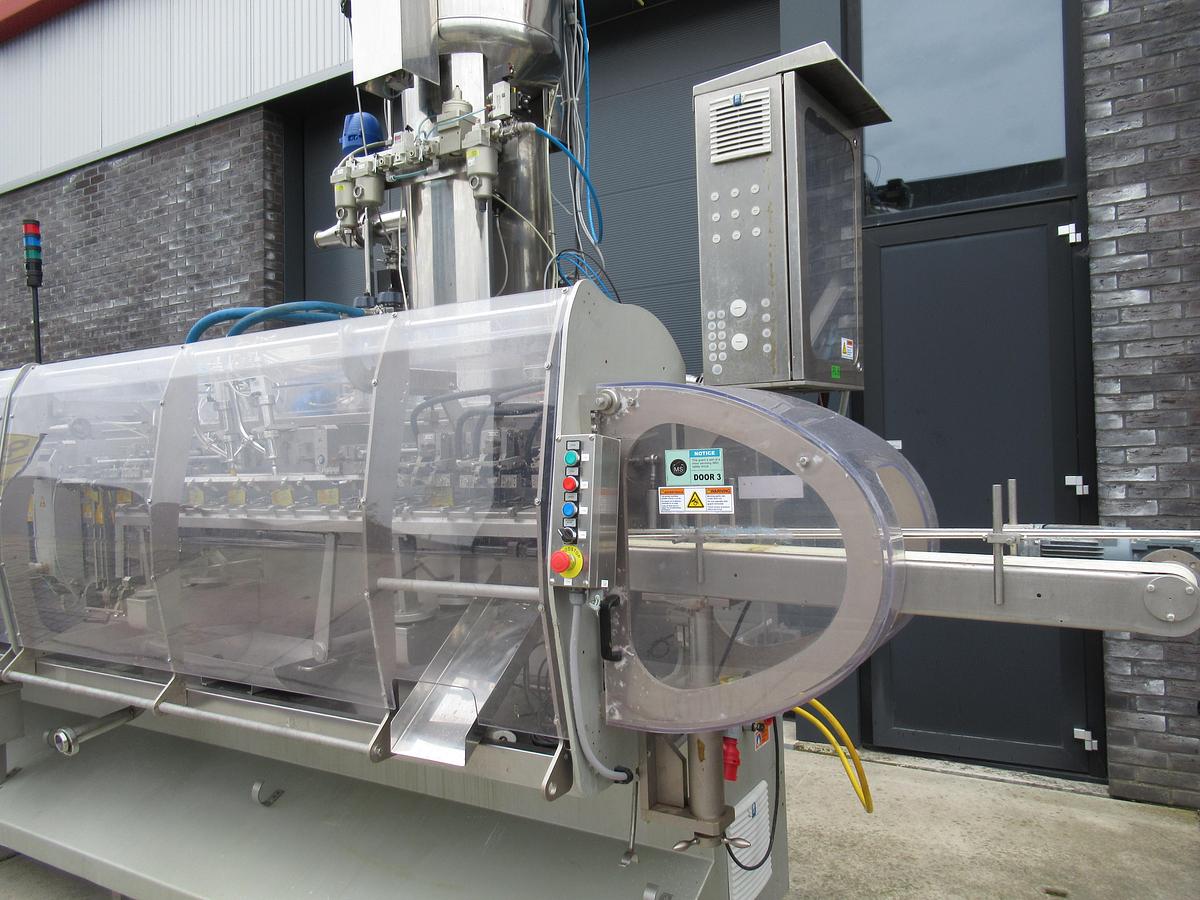

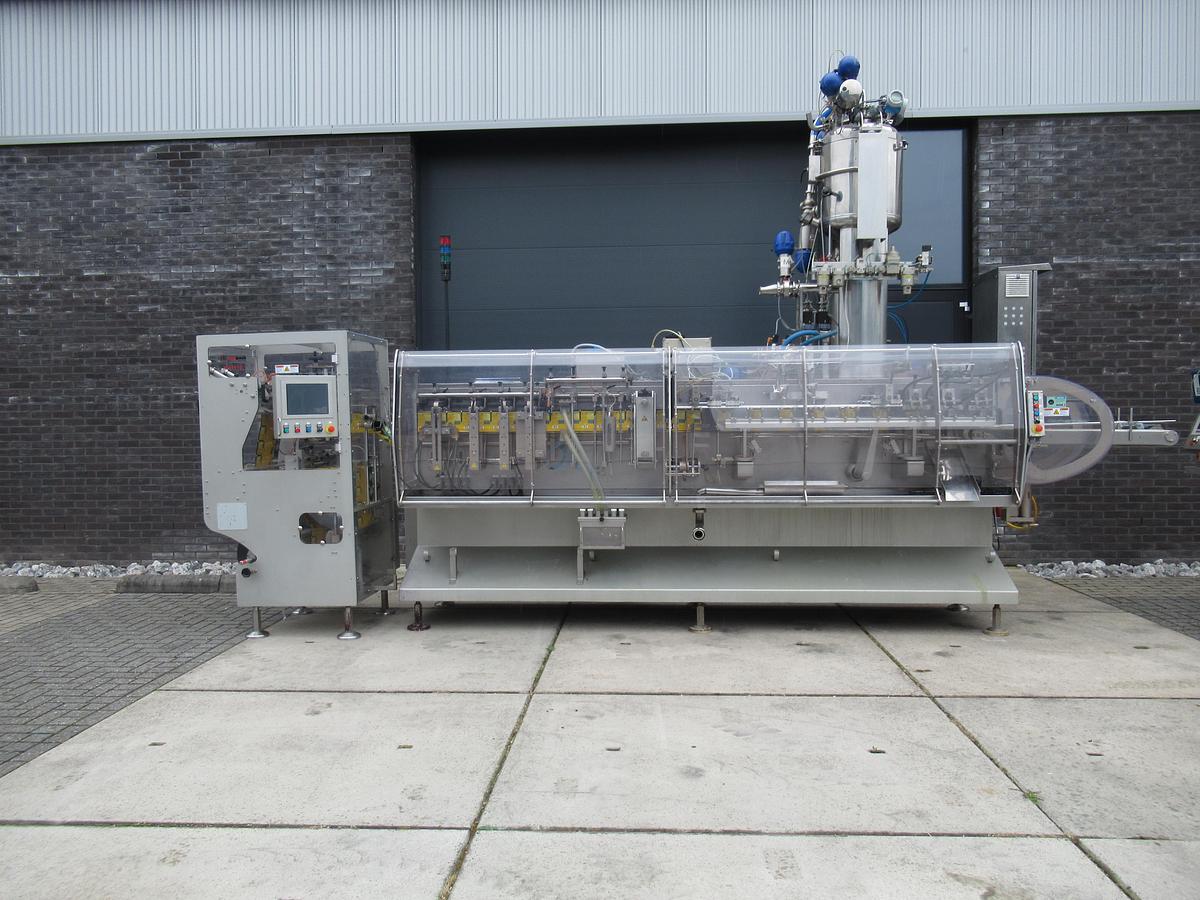

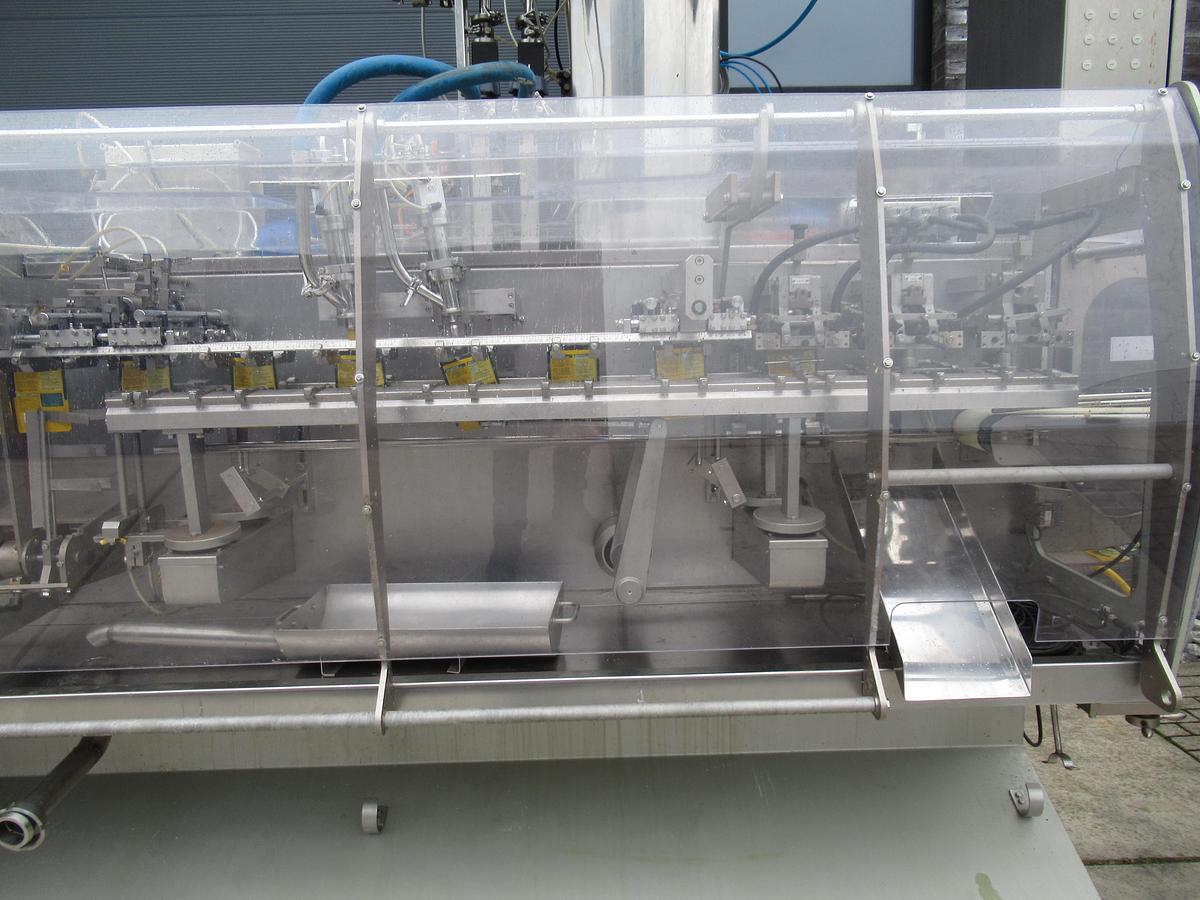

1 x Used Mespack H-145 FE horizontal-, form-, fill-, and seal machine. From the year 2013.

The machine is equipped with the following options, suitable to run Doy-pack pouches with liquids in simplex:

•Bottom hole puncher

•Reel edge aligner

•Gusset former for doypack

•Bottom seal

•2 x Vertical seal, all seals are flat

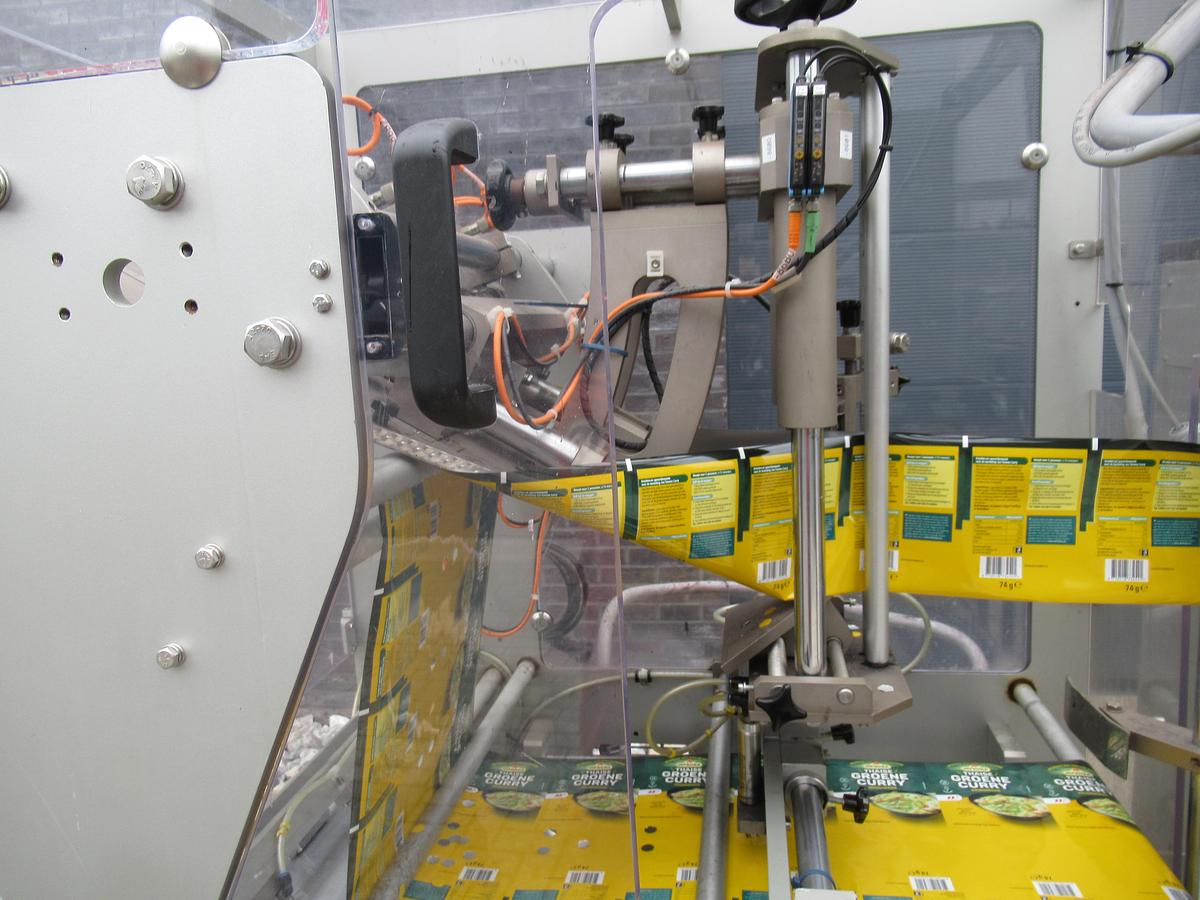

• Photocell

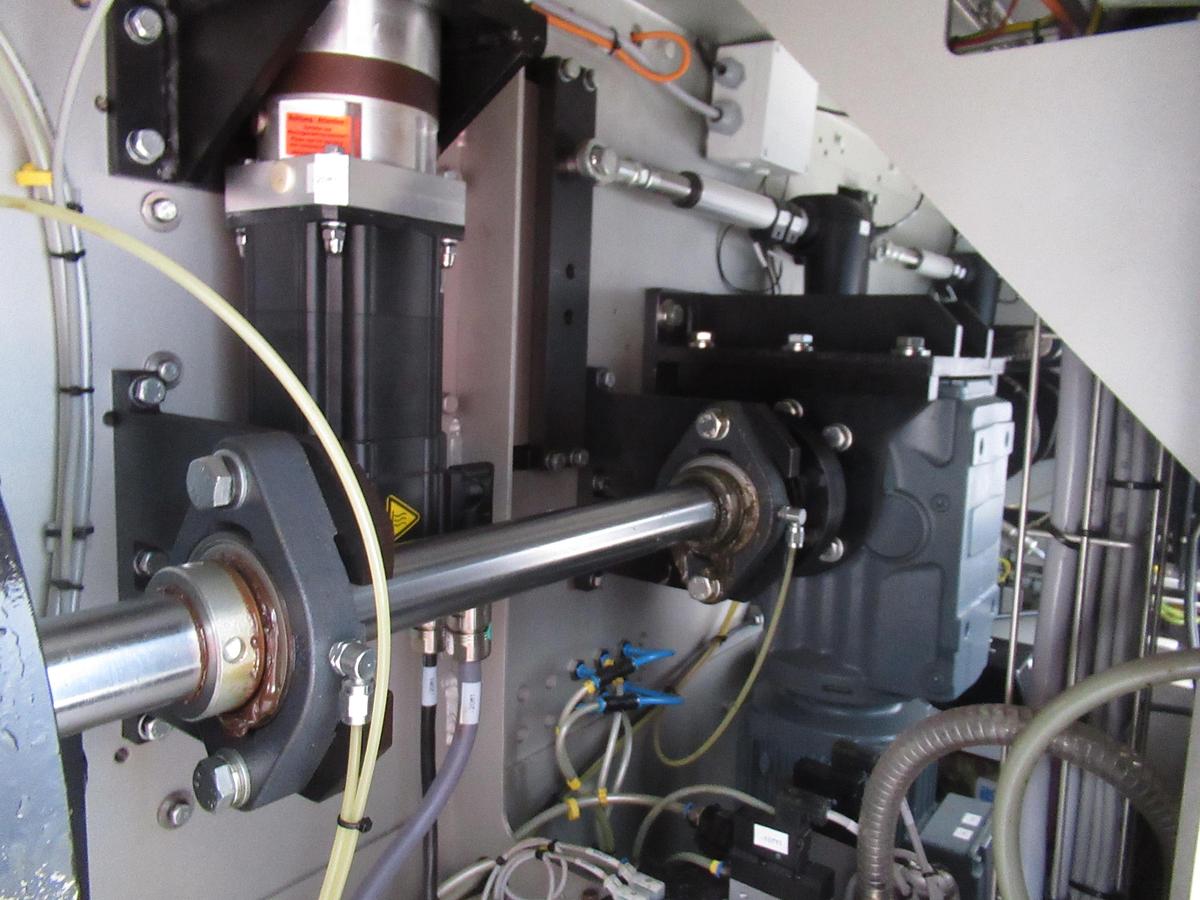

•Servo driven film pulling

•Bottom opener

•Flowmeter dosing system with 2 nozzle

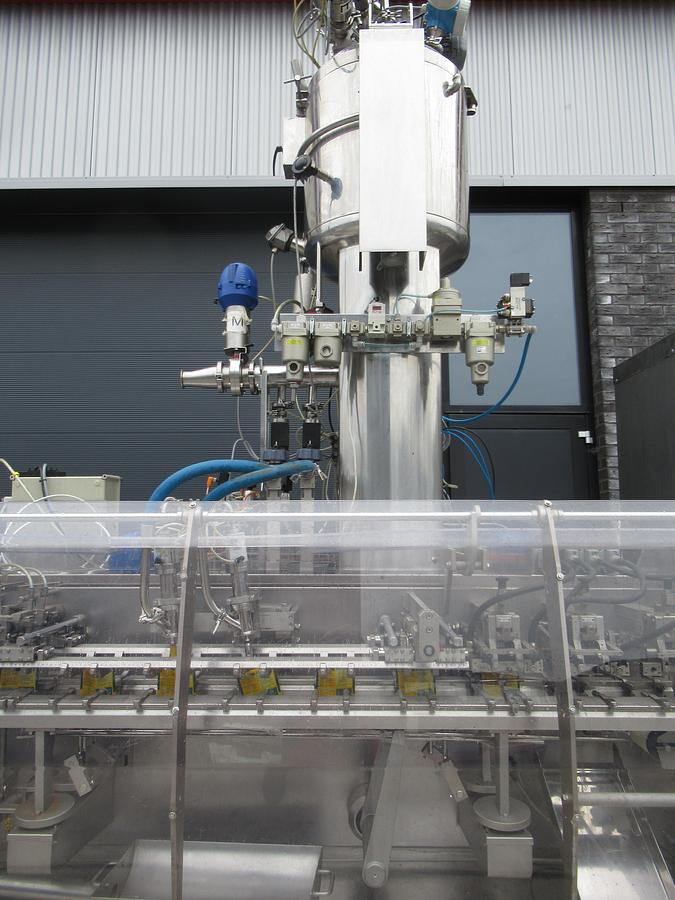

•Heated hopper

•Stirrer in hopper

•2 x round corner puncher (top and bottom)

•V-shaped notch

•Omron PLC

•Touchscreen

•Outlet conveyor

Size range: Min.    80 x 100 x 40 mm

                   Max. 145 x 240 x 90 mm

Filling volume: Max  500 cc

Capacity:  70-80 pouches/min
