2022 cube S2

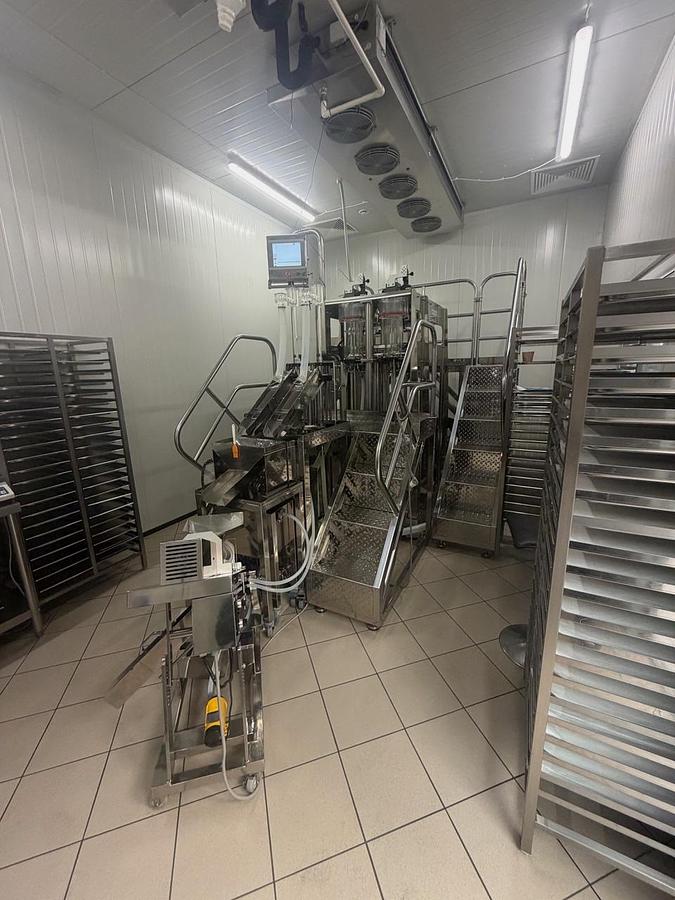

1 x Seamless Capsule Production Line Cube Gel S2

. From the year 2022.  The line consists of the following elements :

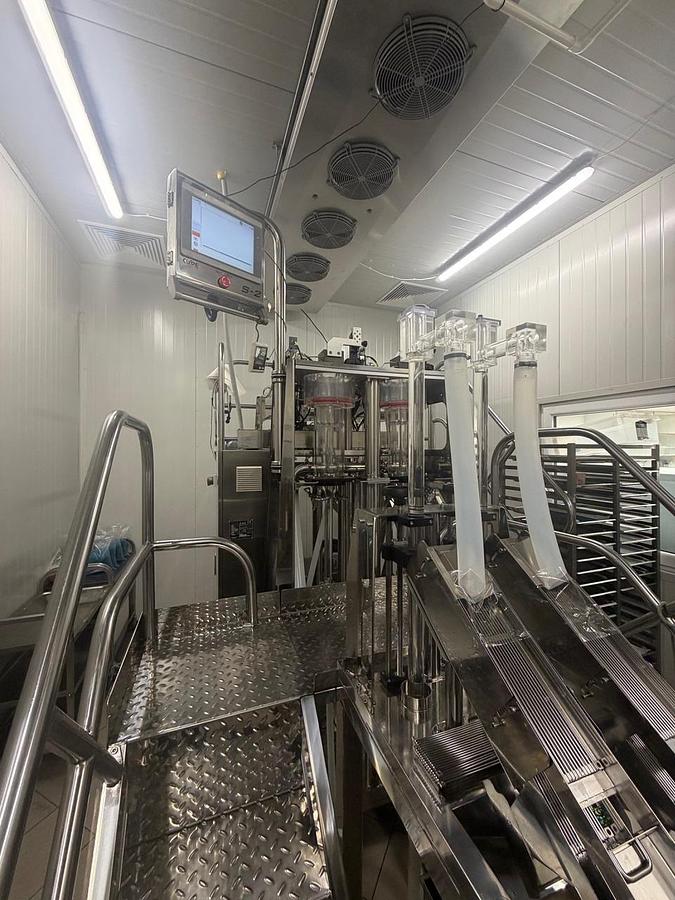

1. Seamless Capsule Production Machine (Model S-2)

Main body (frame: AL6061 / base: SS41 / cover: SUS304)

Nozzle (AL6061)

Oil circulation pump (SPG-35 / SEPA)

 Rotary motion servo motor (CUBE / SANKYO), up-and-down motion servo motor (MITSUBISHI)

Double-layer nozzle system (CUBE / AL6061)

Gear pump system (2 sets) (servo motor-SANKYO, gear pump-MARINO /       SUS420J2)

    Hopper (CUBE / SUS316)

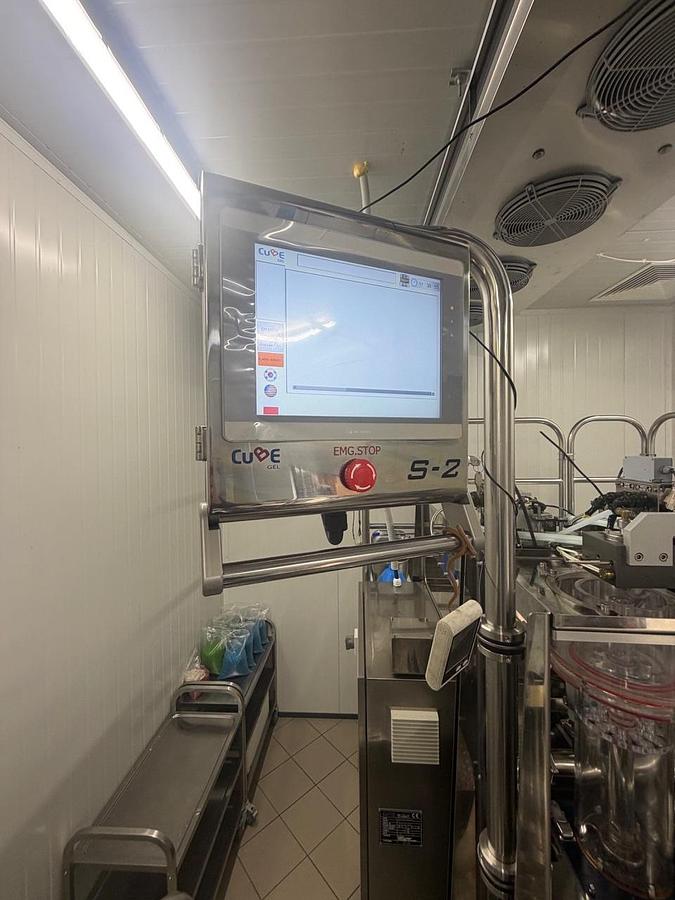

PLC with touchscreen (Brand: Weintek / Touchscreen size: 12”)

1. Gelatine Melting Tank

1. Oil   Dehydrator

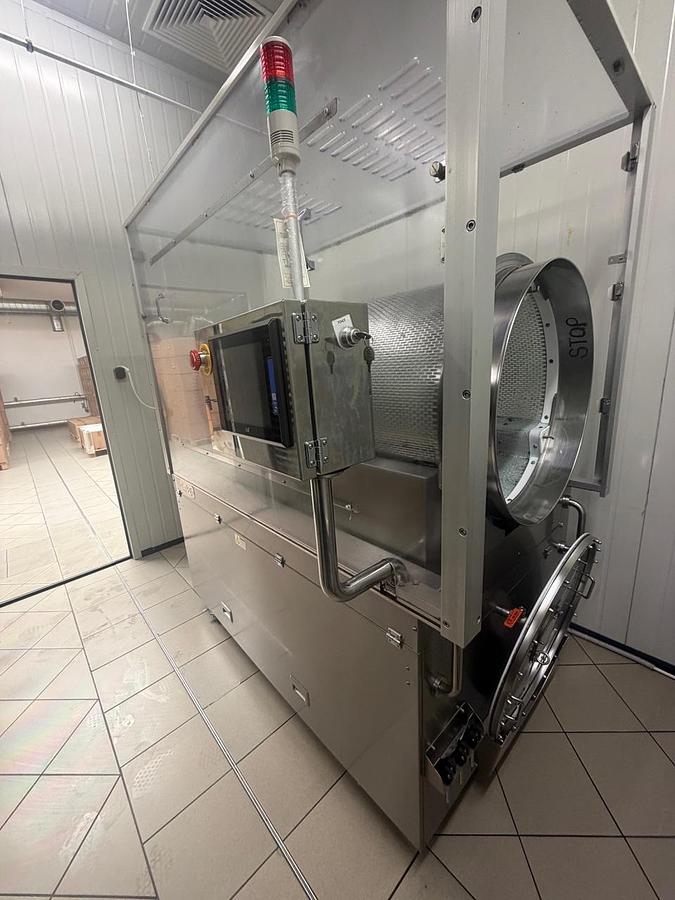

1. Capsule Dryer

Compact design with flexibility and user-friendly operation

Material  ( everything that comes into contact with the production (SUS316L)

Base frame body – AL6061; drum cover – SUS304

Installed sanitary filter

High-efficiency air blower, 1 (one) fan per drum – approx. 618 CFM

Easy to disassemble for cleaning

Variable speed and drying time (controlled by PLC in conjunction with the seamless     capsule machine)

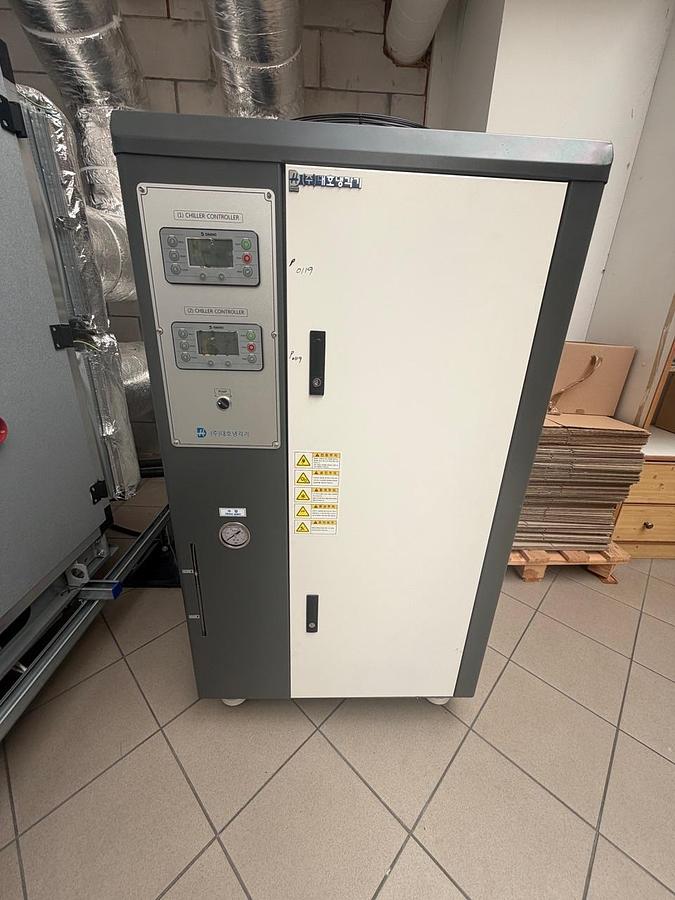

1. Capsule Cooling Unit

Nozzle classification   Output  3 mm

Maximum Ok. 162,000 (45 pcs./s) on the one nozzle
